High Power Density ER2828 Flyback Transformer with 36V-72V Input Range and 3000VAC Isolation

  • 1
  • 2
  • 3

MOQ : Negotiable

Certification : RoHS、ISO9001、CE

Price : Negotiable

Place of Origin : Shenzhen Guangdong

Delivery Time : 3-4weeks

Packaging Details : Carton

Brand Name : ZXY

Model Number : ZXY-ER2828

Contact Now

High Power ER2828 Flyback Power Transformer High Frequency Transformer

The ZXY ER2828 Flyback Power Transformer is engineered for high power density applications. Featuring elongated ER type magnetic cores and flat or Leeds wire winding structures, this transformer effectively minimizes skin effect losses and leakage inductance at high frequencies. Capable of handling tens to hundreds of watts in a compact form factor, it is ideal for DC-DC conversion applications requiring input and output electrical isolation, including switching power supplies, industrial power supplies, and LED drivers.

Key Advantages
  • Multi-output capability: The flyback topology combined with ER2828 can easily achieve 3-4 sets of mutually isolated output voltages, meeting various power supply requirements for communication boards
  • Wide input range: Operates stably from 36V to 72V under wide voltage input, adapting to communication power supply fluctuation characteristics
  • Isolation and voltage resistance: Primary to secondary withstands 3000VAC high voltage testing, meeting safety specifications for communication equipment
  • Compact size: Approximately 31mm x 35.5mm footprint, suitable for high-density layout of communication boards
Performance Characteristics
Feature Description / Performance
Core Type ER2828 ferrite core (typically PC40 or equivalent)
Topology Flyback (isolated DC-DC converter)
Power Range 30W - 150W (depending on operating frequency and design)
Operating Frequency 60kHz - 200kHz (typical range)
Input Voltage Range Wide range, e.g., 36V - 72V DC (telecom) or 85V - 265V AC (offline)
Output Isolation High isolation: 3000VAC - 4000VAC between primary and secondary
Leakage Inductance <3% (with sandwich / interleaved winding technique)
Multi-Output Capability Supports 3-4 isolated output windings
Core Shape Advantage Extended bobbin window for better winding layout and heat dissipation
Typical Efficiency 80% - 87% (depending on design, frequency, and load)
Temperature Range -30°C to +85°C (or wider, with proper materials)
Safety Standards Compliant with IEC/UL60950 or 62368 (creepage / clearance distances)
Key Applications Industrial auxiliary power, telecom DC-DC, LED drivers, battery chargers, photovoltaic optimizers
Product Images

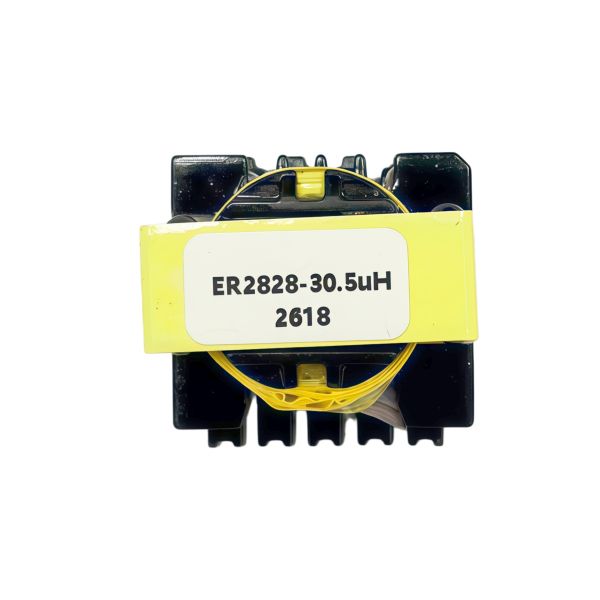

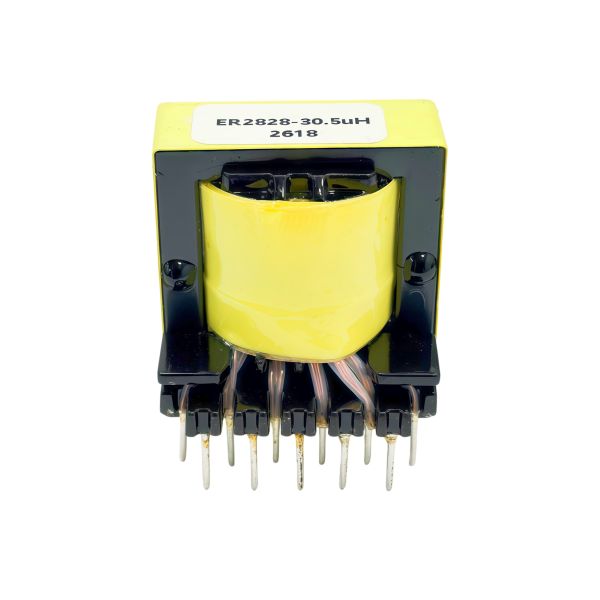

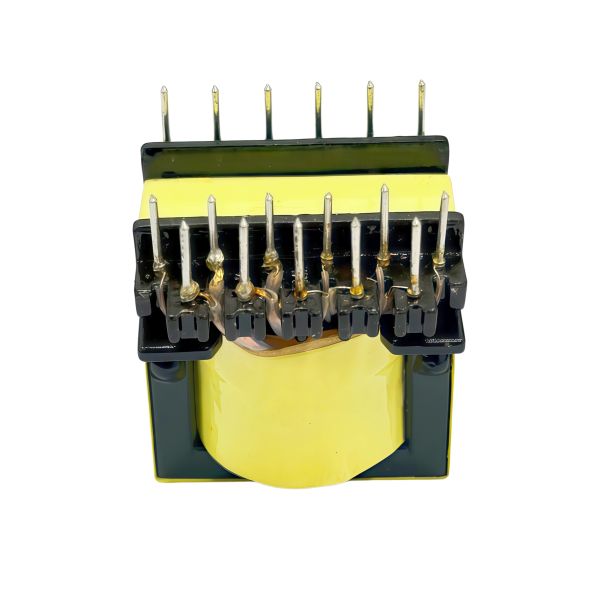

High Power Density ER2828 Flyback Transformer with 36V-72V Input Range and 3000VAC Isolation High Power Density ER2828 Flyback Transformer with 36V-72V Input Range and 3000VAC Isolation High Power Density ER2828 Flyback Transformer with 36V-72V Input Range and 3000VAC Isolation High Power Density ER2828 Flyback Transformer with 36V-72V Input Range and 3000VAC Isolation High Power Density ER2828 Flyback Transformer with 36V-72V Input Range and 3000VAC Isolation
