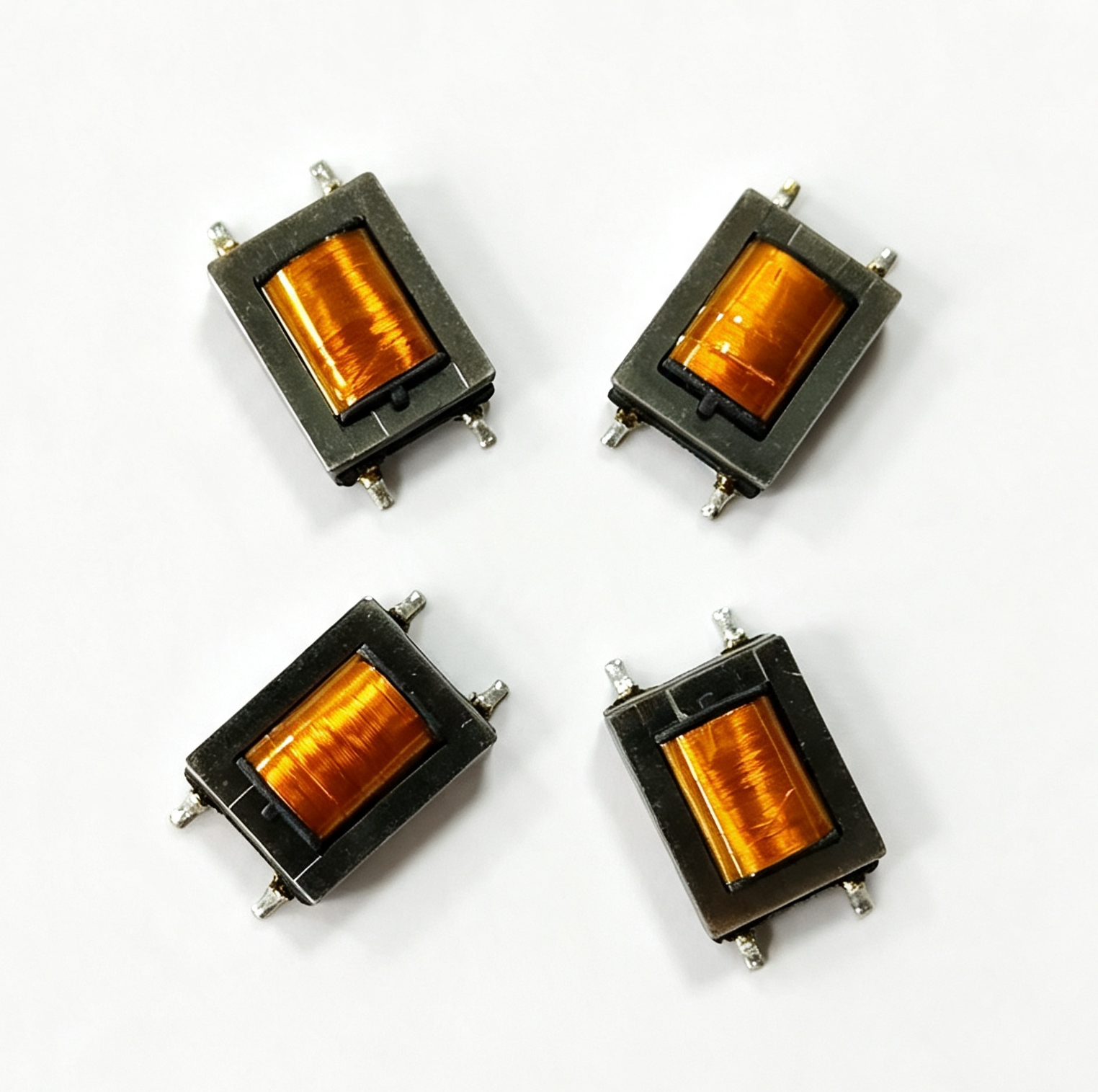

ED8 High Frequency Audio Isolation Transformer with Permalloy Core SMD Surface Mount and Custom Winding

ED8 miniature permalloy core audio isolation transformer, available in SMD packaging. Supports customized impedance ratios including 600:600, 10K:600, and 1:1 configurations. Features low distortion, minimal insertion loss, and excellent anti-interference performance.

This high-frequency signal isolation transformer utilizes high-performance permalloy magnetic cores with compact ED-type design and surface mount SMD structure for automated PCB assembly. Strict winding control ensures consistent inductance and precise impedance matching, effectively blocking ground loop noise and signal interference in audio and communication circuits.

Factory direct supply with support for OEM & ODM winding customization. Bulk wholesale available with fast lead times.

• High-performance permalloy magnetic core
• Compact ED-type miniature design
• Surface mount SMD packaging
• Customizable impedance ratios (600:600, 10K:600, 1:1)
• Low distortion and insertion loss
• Excellent anti-interference performance
• Automated PCB assembly compatible
• Consistent inductance and impedance matching

• Professional audio equipment: audio mixers, amplifiers, recording sound cards
• Communication products: IP phones, VoIP modules, network audio terminals
• Industrial control signal isolation modules
• Medical audio signal transmission devices
